PP-R Solutions

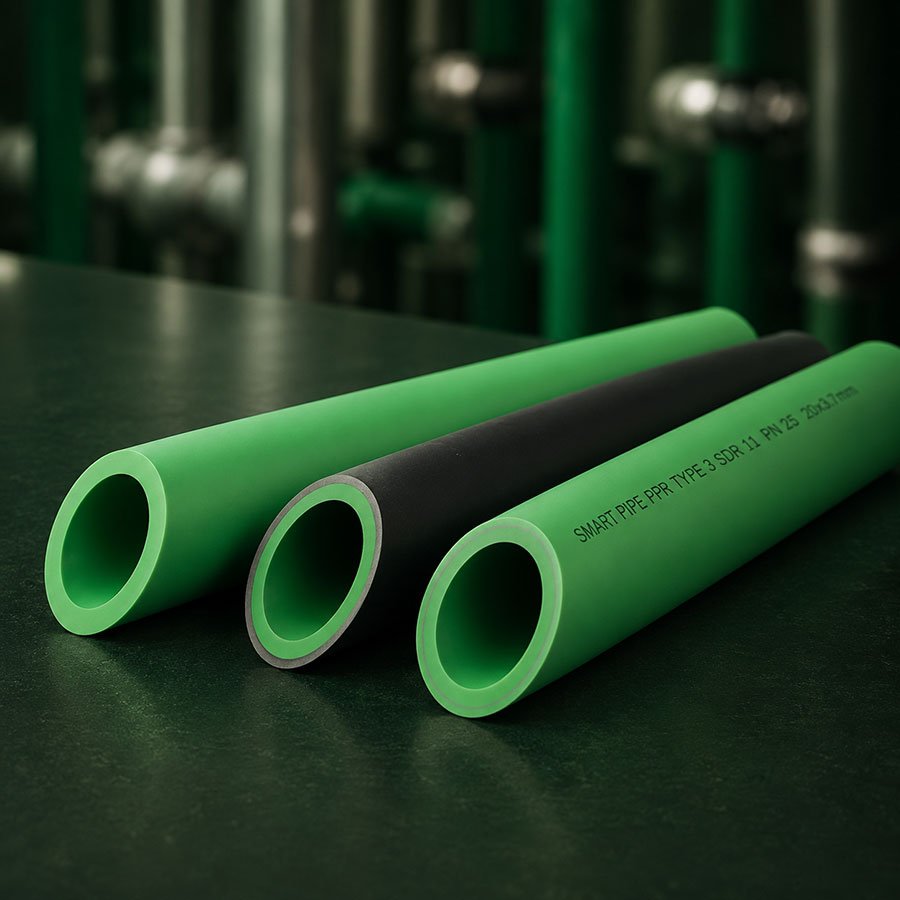

MONO LAYER PIPE

Available with an optional UV-resistant outer layer.

  • Material:

    Polypropylene random copolymer - Type 3

  • Standard:

    DIN 8077/DIN 8078, DIN EN ISO 15874

  • Product series:

    SDR 7.4 - SDR 6

  • Color:

    Green with laser labeling system

  • Form Supplied:

    Pipes are 5.8 Meter Straight Length, and 4 Meter Straight Lengt

Nominal Bore (mm)
Nominal Bore (inch)
Outside Diameter (mm)
Inside Diameter (mm)
Wall Thickness (mm)
Inside Diameter (mm)
Wall Thickness (mm)
20
1/2
20
14.4
2.8
13.2
3.4
25
3/4
25
18
3.5
16.6
4.2
32
1
32
23.2
4.4
21.2
5.4
40
1 1/4
40
29
5.5
26.6
6.7
50
1 1/2
50
36.2
6.9
33.4
8.3
63
2
63
45.8
8.6
42
10.5
75
2 1/2
75
54.4
10.3
50
12.5
90
3
90
65.4
12.3
60
15
110
4
110
79.8
15.1
73.4
18.3
125
5
125
90.8
17.1
83.4
20.8
160
6
160
116.2
21.9
106.8
26.6
200
8
200
145.2
27.4
133.6
33.2
